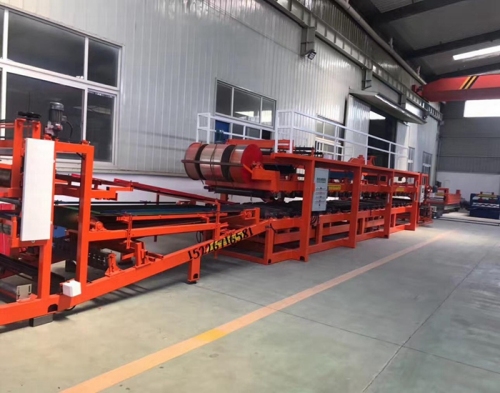

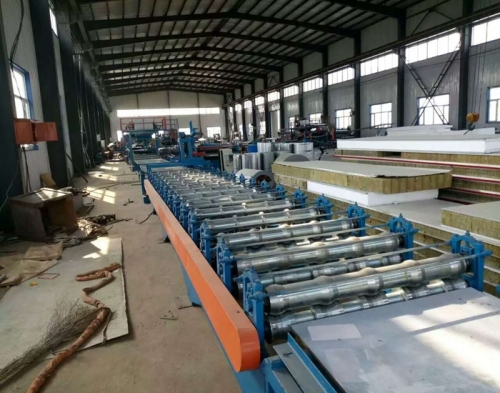

Sandwich panel production line is used for the special purpose of producing the new type constructional material (Sandwich panel), with the function of compounding EPS or Rock wool board to the color steel sheets.

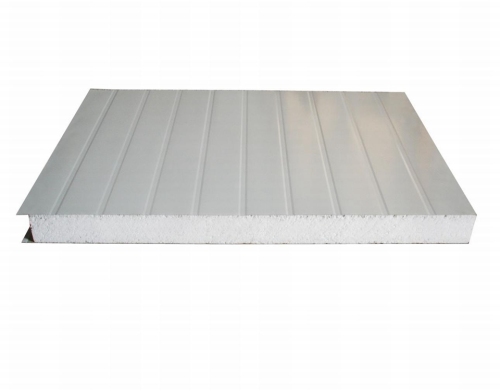

Sandwich panel is very light weight. (1/40 to 1/10 of common brick).It is high strength, warm conservation, water proof, convenient for construction, short construction period etc.

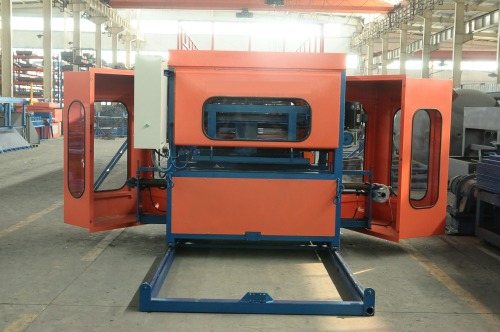

3.Glue section a.Glue section (1) Numbers of pump: 4 sets (top and bottom each 2) (2) Driven power: 0.37KW (3) Flow volume of glue: 0~0.4 kg per pump (4) Type of flow volume control: Change frequency (5) Scale of glue: (white): (Black) 1.5 (6)Gule name: PUA and PUB (7)Speed of spreading:80times/min (8)Driven power:0.5KW x 3 b.Apply Guard Film: (1) Type of apply guard film: Automatic c. Grooving formingdevice (1) Grooving: according to the design requirement (2) Depth of groove: 0.5~1.0mm d. EPS grooving cutter and EPSwaste collector (1) Type of cutting: electrical heat cutting (2) Numbers of heater: 3 (3) Power of heater: 2.5kw×6 (4) Driven power:0.75KW (5) Type of collecting: Vacuum (6) Driven power:2.2kw e. Sandwich panel cutting device (1)Material:EPS (2) Type of cutting:shearing cutter (3) Driven power: 1.5kw×2 (4) Thickness of panel: 40-300mm (5) Length of panel: 1200~30000mm (6) Movement of cutter:1800mm(cylinder distance) (7) Type of operating:touch screen f. Electrical system: (1)Electrical Voltage:380V/3Ph/50Hz (2)Type of controlling: PLC (Delta,Taiwan) (3) Encorder: Omron
