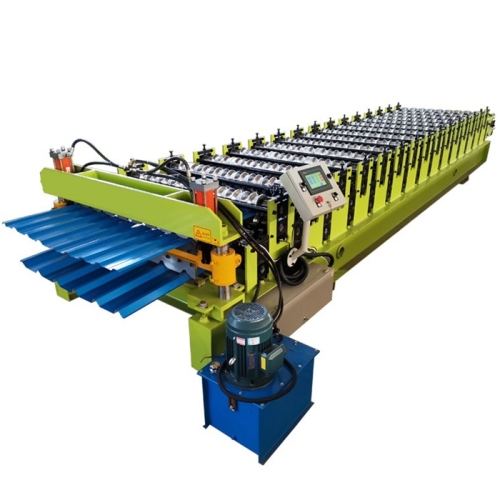

T18 T20 T35 T40 Metal Roof Forming Machine for Euro Market

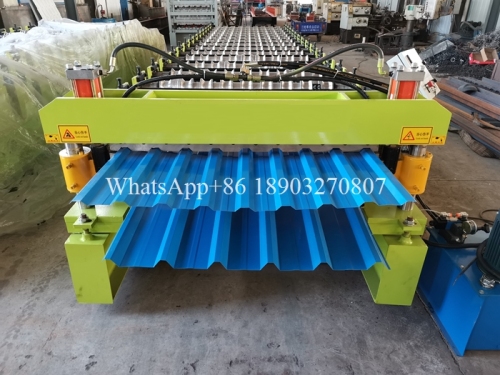

The machine have alternating  bottom and upper stands. Rolls for one profile( like ibr sheeting ) are installed in the bottom stands, and rolls for another profile(like corrugated sheeting )are mounted on the upper stands.
Description Review
Description

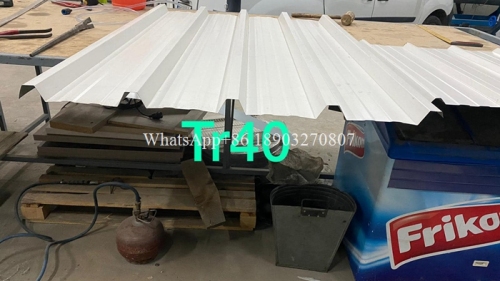

Tr20 Tr40 Metal Roof Forming Machine

The machine have alternating  bottom and upper stands. Rolls for one profile( like ibr sheeting ) are installed in the bottom stands, and rolls for another profile(like corrugated sheeting )are mounted on the upper stands. The whole line will use only one uncoiler, one cutoff unit, one controlled box.  But the  machine can’t produce the 2 profiles at the same time.



Details of Metal roof forming machine
Coil Required Material PPGI GI AL
Width 914/925/1000/1200/1220/1250mm
Thickness 0.3-0.7mm as custom order
Power Required Power 380V 50Hz 3 Phase, 220V, 415V available
Main Motor 5.5KW Siemens Brand
Cutting Motor 4KW Siemens Brand
Machine Support Frame 40H Steel
Forming Stations 14 Rows as profile require
Structure 18-20mm
Shaft 75mm Solid shaft
Roller 45# Steel with hear treatment
Chain 1.2inch
Bearings Standard as custom order
Speed  15-3-m/min
Electric Components Delta and Siemens brand
Size 7.5*1.3*1.6M
Weight 4T


We have series kinds of roll forming machine. Such as Purlin Roll Forming Machine. Door Series Roll Forming Machine. Floor deck roll forming machine, Down spout gutter machine etc.

To request a quote or If you have any questions about our machines, please contact Rebecca anytime .

https://wa.me/message/GFJCYC77KPELM1

Email: Rebeccamachine@aliyun.com

Youtube: www.youtube.com/channel/UCFbWECOfV2xeM-WCaww_iPQ

Main Components

Decoiler We have manual type , it's Free
As Option, Hydraulic type will be faster , and paid

Feeding Table as you like

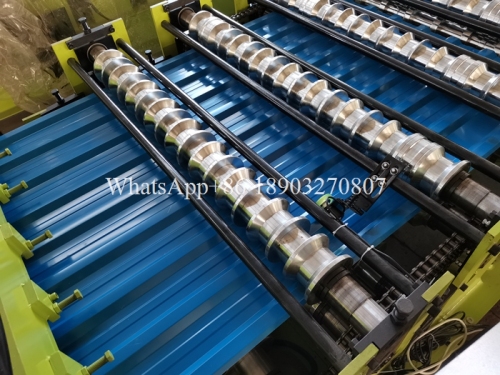

Forming Rollers we use 45# steel , heat treatment

Cutting System

Control System

Pump Station

Out Put Table
